Wholesale 2LHJ220 horizontal opposite center hydraulic clutch gearbox

Home / Products / Compressor gearbox / Reverse series / 2LHJ220 horizontal opposite center hydraulic clutch gearbox

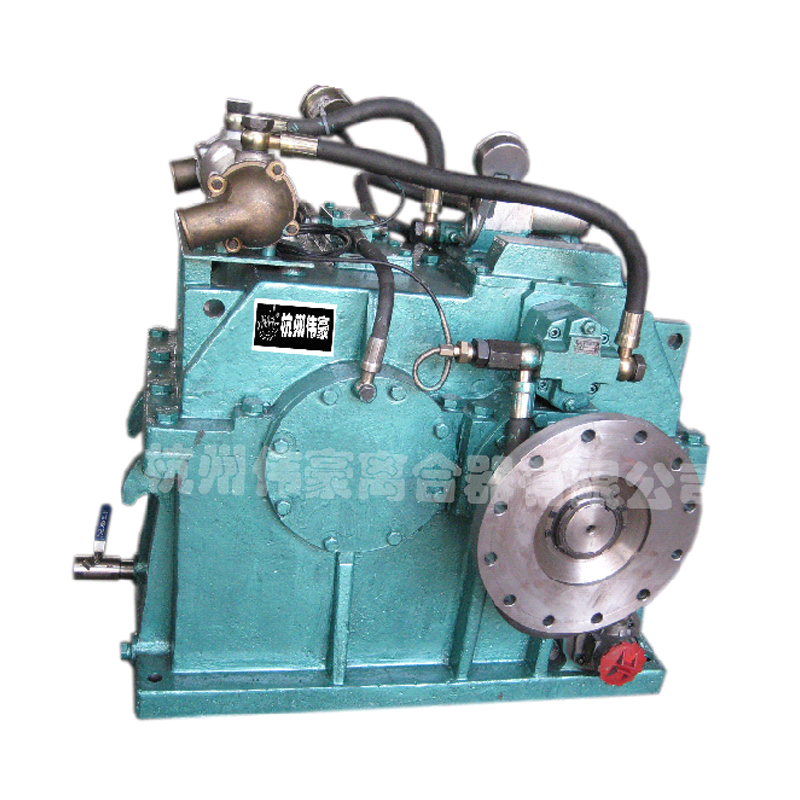

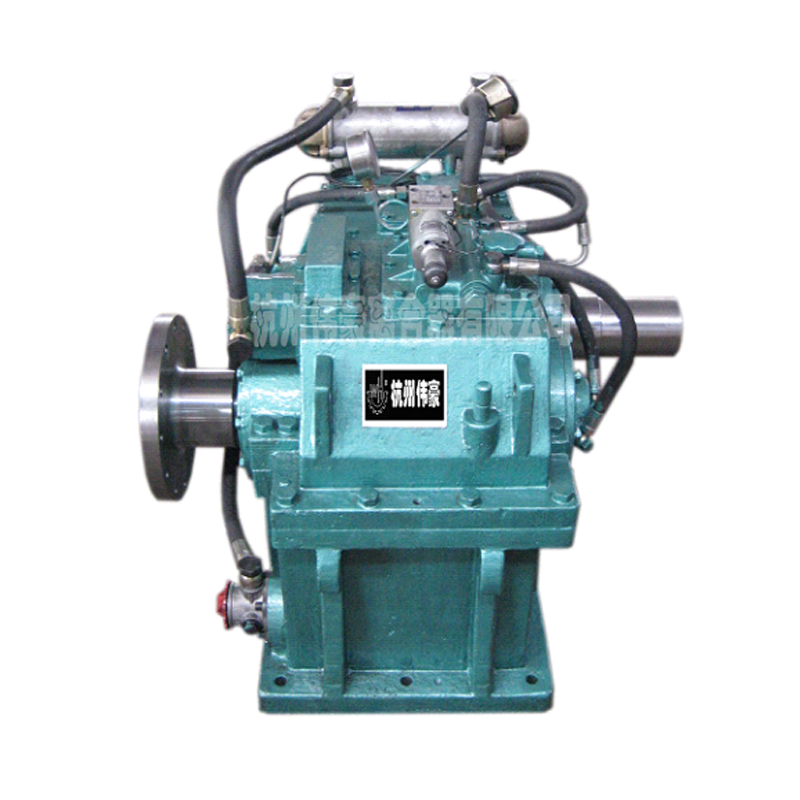

2LHJ220 horizontal opposite center hydraulic clutch gearbox
  • 2LHJ220 horizontal opposite center hydraulic clutch gearbox
  • 2LHJ220 horizontal opposite center hydraulic clutch gearbox
Reverse series

2LHJ220 horizontal opposite center hydraulic clutch gearbox

Mounting Dimension
Contact Now
  • Parameter
LHJ220 reduction gearbox technical specifications
(equipped with Mannheim diesel engine)

Type Primary cylindrical gear transmission with hydraulic clutch
Input power 250Kw
Input speed 2100rpm
Input shaft steering Reverse clock rotation (facing the gearbox input shaft)
Output shaft steering    Output is opposite to input
Output speed 800rpm
Control mode Electrohydraulic control, control power supply DC 24V
Hangzhou Weihao Clutch Co., Ltd.

Who Are We

As professional 2LHJ220 horizontal opposite center hydraulic clutch gearbox company and custom 2LHJ220 horizontal opposite center hydraulic clutch gearbox factory, Hangzhou Weihao Clutch Co., Ltd was founded in 1992. The company integrates design and manufacture, and mainly provides various supporting gearboxes for fishing, dredging engineering,environmental-protection engineering, various conservancy projects, metallurgy, minerals, electric power, coals.
In addition, in order to enhance technical capabilities and absorb manufacturing technology from various countries around the world, the company also undertakes large-scale imported gearbox maintenance business and has successfully repaired gearboxes imported from countries such as the Netherlands, Japan, South Korea, Germany, and the United States.
