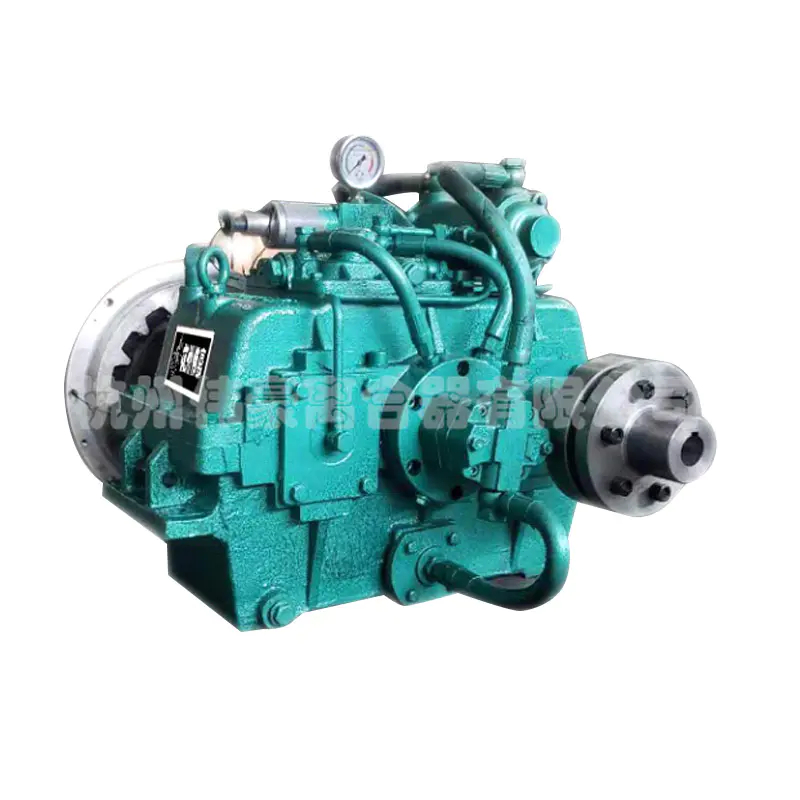

What key factors need to be considered during the design and manufacturing process of the YL400 trawler gearbox?

When designing the gearbox for the YL400 trawler, a series of key factors need to be considered to ensure its performance, reliability and durability.

The design team needs to clarify the working environment and working conditions requirements of the gearbox. Working environment analysis: In a marine environment, the gearbox will work in an environment full of salt spray, high humidity and possible seawater erosion. This requires the gearbox to have good anti-corrosion properties. When temperatures fluctuate, the temperature at sea may fluctuate significantly, from cold winter to hot summer, and the gearbox must be able to withstand such temperature changes without affecting its performance and life. Vibration and impact When trawlers operate at sea, they will be affected by natural forces such as waves and wind, causing vibration and impact. Gearbox design needs to take these factors into consideration to ensure that it is structurally sound and operates smoothly. Analysis of working condition requirements: Load situation: During trawling operations, the gearbox will bear a huge load from the fishing net and the catch. The design team needs to understand the magnitude and fluctuation range of this load in order to design the gearbox with sufficient strength and durability. Working hours: Fishing boats may need to perform continuous operations for a long time, which requires the gearbox to have good durability and stability and be able to withstand long-term high-load operation. Start and stop frequency: Frequent starts and stops cause significant wear and tear on the gearbox. Design needs to understand the frequency of this operation so that the gearbox can be designed with appropriate materials and construction to cope with this loss.

The calculation of gear transmission parameters is the core part of the design. The design team needs to accurately calculate the module, number of teeth, tooth shape and other parameters of the gear according to the requirements of the ship's propulsion system. These parameters must not only meet the requirements for transmitting torque and speed, but also consider the transmission efficiency and reliability of the gear. In addition, the clearance fit of the gears also needs to be precisely designed to reduce noise and vibration and improve the overall performance of the gearbox.

In the structural design of the gearbox, it is necessary to determine the appropriate structural form, including the design of the inner and outer casing, support method, and sealing structure. These designs must ensure that the gearbox can operate normally in the harsh offshore environment and facilitate daily maintenance and repair. The rationality of the structural design will directly affect the service life and maintenance cost of the gearbox.

Material selection is also a part of the design process that cannot be ignored. Gearboxes are subject to tremendous pressure and torque when working, so the materials chosen must have sufficient strength and hardness. Typically, high-quality steel alloys or stainless steels are preferred because they offer excellent mechanical properties and durability. Since fishing boats often operate in seawater, the gearbox is easily corroded by seawater. Therefore, the selected materials must have good corrosion resistance to prevent seawater damage to the gearbox. Some special coating or surface treatment techniques can also be used to enhance the corrosion resistance of materials. Gears wear out over long periods of operation, especially at high speeds and loads. Therefore, choosing materials with good wear resistance can extend the service life of the gearbox. The gearbox generates a large amount of heat during operation, so the selected material needs to be able to withstand certain temperature changes and have good heat treatment properties to maintain the stability of its mechanical properties. While high-performance materials can provide better durability and reliability, cost is also a factor that cannot be ignored. During the design process, a balance point needs to be found between performance and cost to ensure that the gearbox has excellent performance without being too expensive.

In the manufacturing process, the formulation and execution of process flow are equally important. The processing of gearbox parts requires high-precision machine tools and strict quality control. Processes such as heat treatment and surface treatment also require precise control based on material properties and design requirements. In addition, the assembly process also needs to be strictly followed to ensure the precise fit of each component and the stability of the overall performance.

The design of the gearbox also needs to consider human factors. For example, the design of the operation interface should be concise and clear, so that the crew can quickly become familiar with and master it. At the same time, the setting of safety protection devices is also essential to prevent damage to personnel and equipment caused by operating errors or equipment failures.
