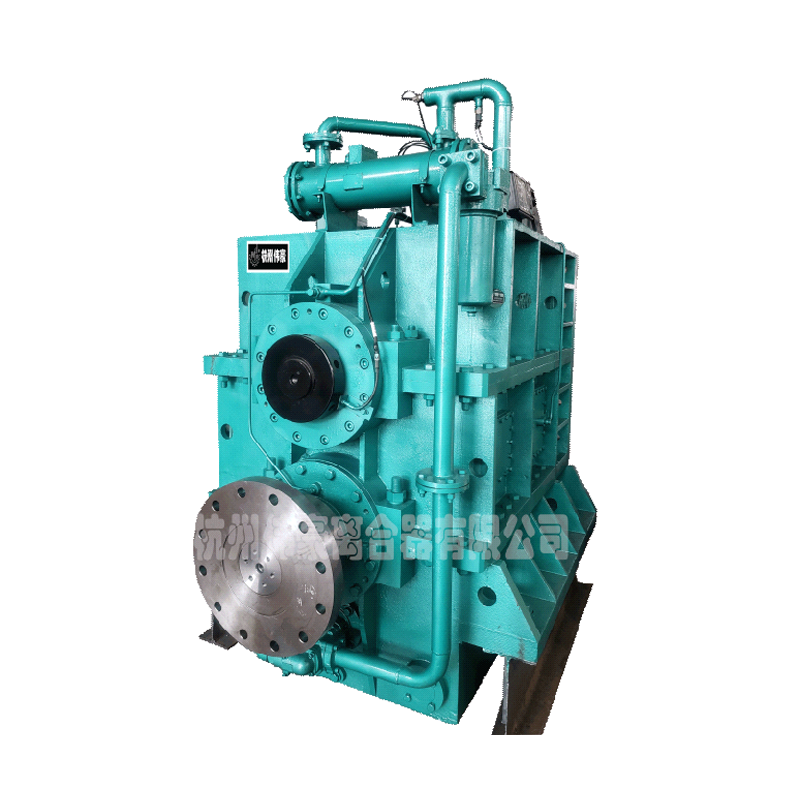

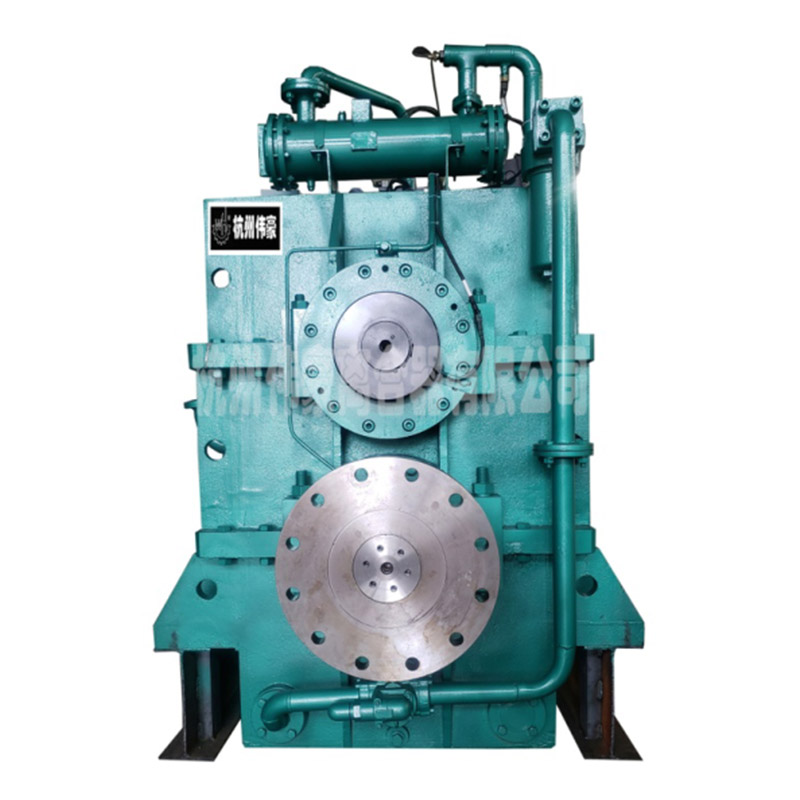

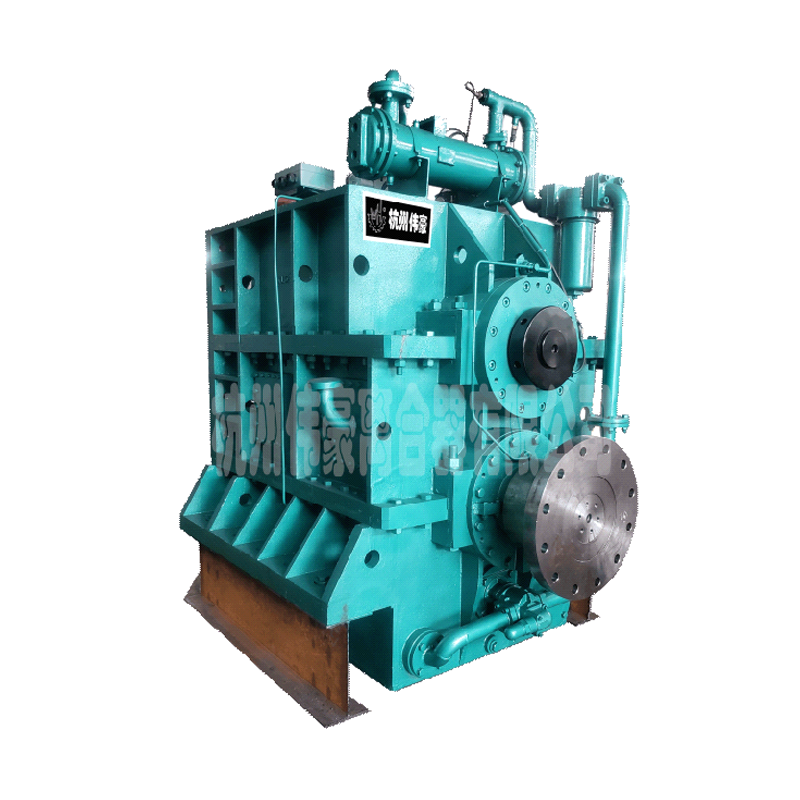

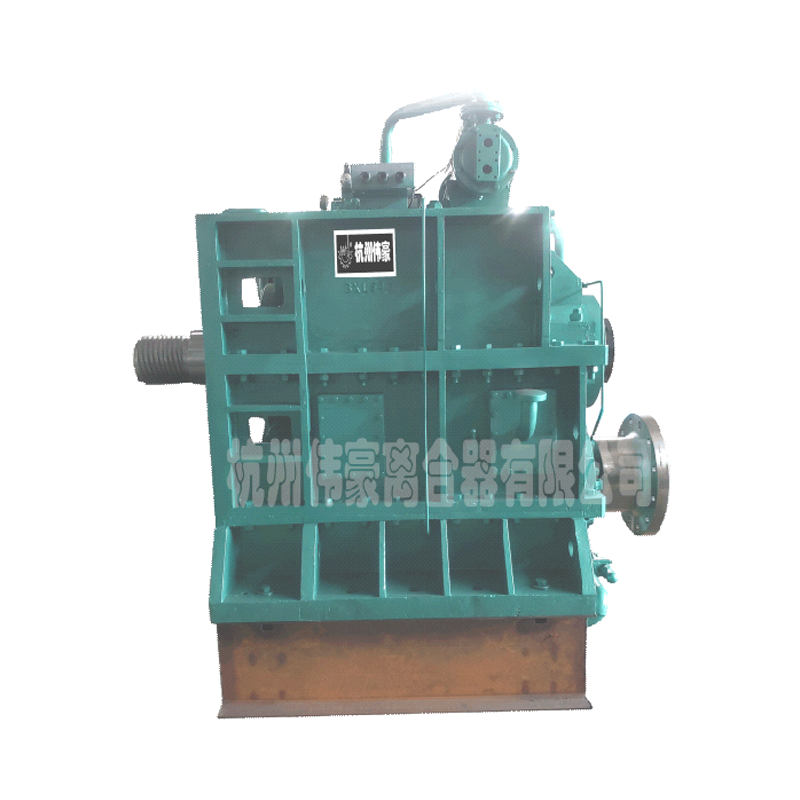

BXL540 engineering marine reduction clutch gearbox
  • BXL540 engineering marine reduction clutch gearbox
  • BXL540 engineering marine reduction clutch gearbox
  • BXL540 engineering marine reduction clutch gearbox
  • BXL540 engineering marine reduction clutch gearbox
Pump box integrated gearbox

BXL540 engineering marine reduction clutch gearbox

Technical specifications
1. Supporting ship type: various types of dredgers (can also be used for transporting mud on land)
2. Gearbox transmission form: cylindrical helical gear, two shafts, two gears transmission
3. Clutch form: hydraulically operated wet multi-disc friction clutch
4. Center distance: 540mm
5. Speed ratio: 2.1666:1 (2.0645:1)
6. Diesel engine power/speed: 1760kW/1000rpm (1960kW/1000rpm)
7. Rated input transmission capacity: 1.76kW/rpm (1.96kW/rpm)
8. Rated tensile force of mud pump impeller: 28t
9. Rotation direction: Input end (facing output shaft): clockwise
                                  Output end (facing the output shaft): counterclockwise
Contact Now
  • Parameter
Product model BXL540
Input speed (rpm) 400~1600
Input transmission capacity kW/ (r · min-1)    ≤1.82
Reduction ratio <3.9:1
Reference weight kg ~8000
Hangzhou Weihao Clutch Co., Ltd.

Who Are We

As professional BXL540 engineering marine reduction clutch gearbox company and custom BXL540 engineering marine reduction clutch gearbox factory, Hangzhou Weihao Clutch Co., Ltd was founded in 1992. The company integrates design and manufacture, and mainly provides various supporting gearboxes for fishing, dredging engineering,environmental-protection engineering, various conservancy projects, metallurgy, minerals, electric power, coals.
In addition, in order to enhance technical capabilities and absorb manufacturing technology from various countries around the world, the company also undertakes large-scale imported gearbox maintenance business and has successfully repaired gearboxes imported from countries such as the Netherlands, Japan, South Korea, Germany, and the United States.
